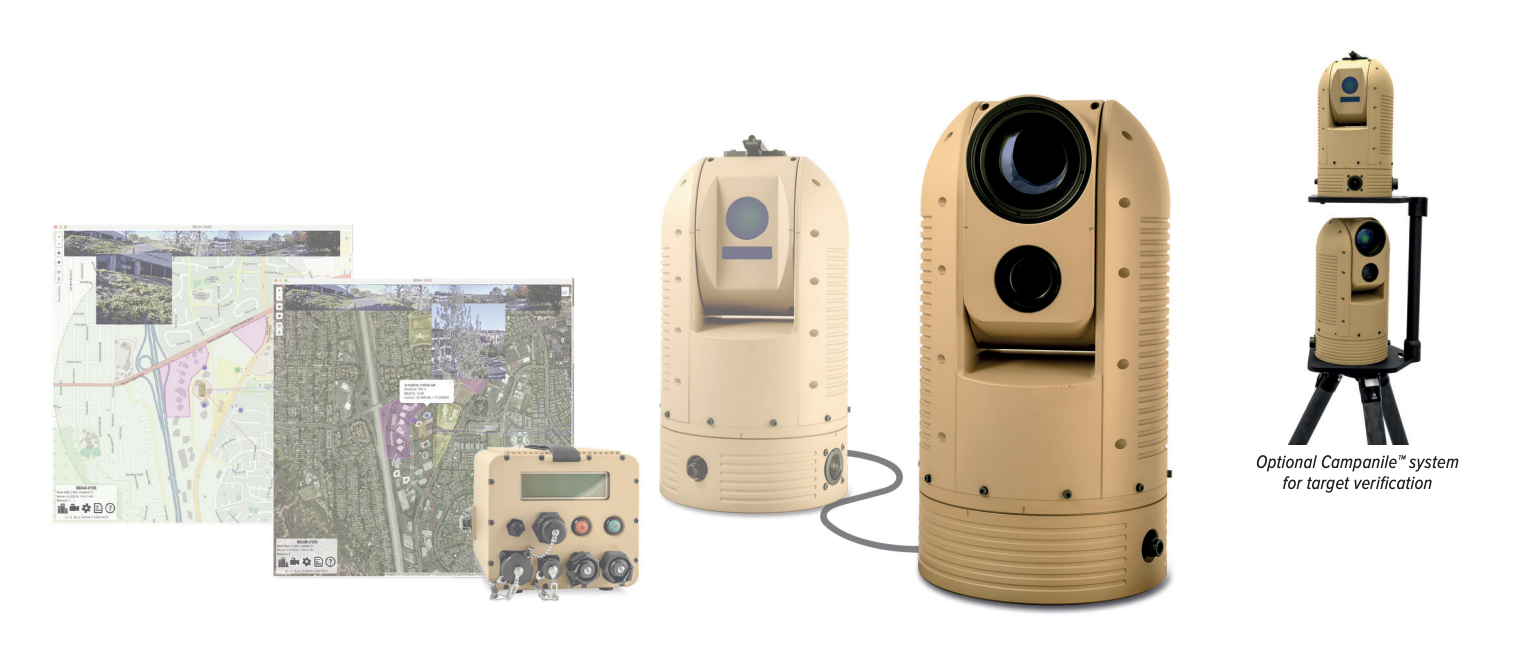

CampaGokko™ 233 is an optional target investigation system designed to complement the capabilities of Beam™ 230. Equipped with multiple electro-optic sensors, CampaGokko™ enables operators to recognize and identify targets identified by Beam™ swiftly, facilitating quick and effective decision-making. It offers a range of EO/IR custom-made payloads with the following features:
- Unique EO/IR cameras with Continuous Optical Zoom
- Excellent performance with Image Enhancement features
- Full integration with Beam™ control software for quick target tracking
- Variety of sensors in custom-made payloads, including:
- Daylight/nighttime color 4K cameras
- Cooled or uncooled thermal imaging cameras with a range of lenses
- Laser pointer
- Remote control over Ethernet LAN or WAN
- Full recording capabilities
CampaGokko™ 233 enhances surveillance capabilities, providing detailed and enhanced imagery for improved target identification and tracking, making it a valuable addition to any security or surveillance system.
Specifications
|
Sensors
|
E/O HD sensors w/zoom, optional thermal sensors
|
|
Field-of-View
|
360° in azimuth and -30°/+90° in elevation w/ zoom
|
|
Sensor Size
|
6.5 x 6.4 x 10 in
|
|
Sensor Weight
|
10 lbs
|
|
Beam Power Box Size
|
5 x 6.5 x 7.5 in
|
|
Beam Power Box Weight
|
4.5 lbs (w/ battery)
|
|
Weight
|
30 lbs w/ all accessories
|
Optional Sensors – Variety of thermal sensors
Mounting – Tripod included
Power Supply – 2590 battery for 2.5 hours w/ BEAM™ 230
Operating Temperature – 5° C to +50° C
Storage Temperature – -20° C to +60° C
Interface – Ethernet for LAN and WAN connectivity
Control – Direct control from Beam™ interface
